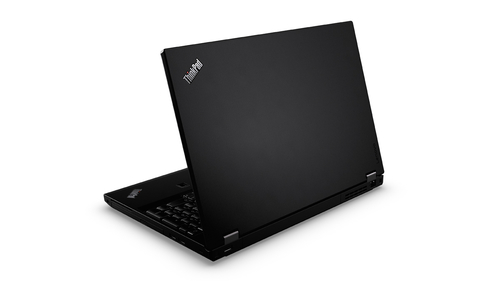

Lenovo ThinkPad ThinkPad L560

Product Description

Add to Favorites

Summary

Model Lenovo ThinkPad L560, Intel® Core™ i5, 2.3 GHz, 39.6 cm (15.6"), 1366 x 768 pixels, 4 GB, 500 GB Price $0.00 Categories Computers Laptops Lenovo Manufacturer Lenovo Product Number 20F1000SUS

Add to Cart

Features
Specifications
Photos

Features

Thin and Light Design

At just 27.6 mm thick and weighing in at as little as 2.4kg, depending on the feature set, the L560 is a great choice for on-the-go professionals.

Robust Connectivity

Despite being thin and light, the L560 has the ports you need – including legacy ports – to connect to the devices you need to get the job done.

Long Battery Life

At **up to 7.2 hours of battery life, the L560 will keep your business online even when plug-in power is not on tap.

Business-Class Security

Available with fingerprint reader, this laptop lets you use biometrics for login, so the swipe of your finger becomes your password. Intel® security features and vPro options step up protection and enhance manageability when deploying upgrades. And a Trusted Platform Module (TPM) chip further encrypts your critical information.

Ultra Durable and MIL-SPEC Tested

The L560 meets 12 US military-spec tests for ruggedness, durability, and quality: high pressure, humidity, vibration, high temperature, temperature shock, low pressure (15,000 ft), low temperature, and dust. In addition, innovative roll-cage technology and glass-fiber reinforced plastic add extra strength and rigidity.

Plenty of Storage

With multiple storage options – up to 1TB HDD or up to 512GB SSD, just to name two – you’ll have plenty of room to store your largest files.

Responsive Performance

With up to 16GB of memory, you can run multiple high-end software applications without stalling your PC.

Specifications

Family: ThinkPad
Series: L
ProductCode: 20F1000SUS
Category: Laptops

Design

Product type:

Laptop

Product colour:

Black

Form factor:

Clamshell

Display

Display diagonal:

39.6 cm (15.6")

Display resolution:

1366 x 768 pixels

Touchscreen:

HD type:

Panel type:

IPS

LED backlight:

Yes

Native aspect ratio:

16:9

Processor

Processor family:

Intel® Core™ i5

Processor manufacturer:

Intel

Processor model:

i5-6200U

Processor frequency:

2.3 GHz

Processor generation:

6th gen Intel® Core™ i5

Processor cores:

Processor threads:

Processor boost frequency:

2.8 GHz

System bus rate:

4 GT/s

Processor cache:

3 MB

Processor cache type:

Smart Cache

Processor socket:

LGA 1356 (Socket B2)

Processor lithography:

14 nm

Processor operating modes:

64-bit

Processor series:

Intel Core i5-6200 series

Processor codename:

Skylake

Bus type:

QPI

Stepping:

Thermal Design Power (TDP):

15 W

Configurable TDP-up frequency:

2.4 GHz

Configurable TDP-up:

25 W

Configurable TDP-down:

7.5 W

Configurable TDP-down frequency:

0.8 GHz

Tjunction:

100 °C

Maximum number of PCI Express lanes:

PCI Express slots version:

3.0

PCI Express configurations:

1x4, 4x1

ECC supported by processor:

Memory

Internal memory:

4 GB

Maximum internal memory:

16 GB

Internal memory type:

DDR3L-SDRAM

Memory clock speed:

1600 MHz

Memory form factor:

SO-DIMM

Memory layout (slots x size):

1 x 4 GB

Memory slots:

2x SO-DIMM

Storage

Total storage capacity:

500 GB

Storage media:

HDD

Optical drive type:

DVD±RW

Number of HDDs installed:

HDD capacity:

500 GB

HDD speed:

7200 RPM

HDD size:

3.5"

Card reader integrated:

Yes

Compatible memory cards:

MMC, SD, SDHC, SDXC

Graphics

On-board graphics card:

Yes

Discrete graphics card:

Discrete graphics card model:

Not available

On-board graphics card model:

Intel® HD Graphics 520

On-board graphics card family:

Intel® HD Graphics

On-board graphics card base frequency:

300 MHz

On-board graphics card dynamic frequency (max):

1000 MHz

Maximum on-board graphics card memory:

1.74 GB

On-board graphics card DirectX version:

12.0

On-board graphics card OpenGL version:

4.4

On-board graphics card ID:

1916

Audio

Number of built-in speakers:

Speaker power:

2 W

Built-in microphone:

Yes

Camera

Front camera:

Yes

Network

Wi-Fi:

Yes

Wi-Fi standards:

802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet LAN:

Yes

Ethernet LAN data rates:

10,100,1000 Mbit/s

Bluetooth:

Yes

Bluetooth version:

4.1

Ports & interfaces

USB 2.0 ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

HDMI ports quantity:

Ethernet LAN (RJ-45) ports:

DisplayPorts quantity:

Mini DisplayPorts quantity:

DVI port:

VGA (D-Sub) ports quantity:

Thunderbolt ports quantity:

Headphone outputs:

Microphone in:

Combo headphone/mic port:

Yes

Docking connector:

Yes

ExpressCard slot:

CardBus PCMCIA slots quantity:

CardBus PCMCIA slot type:

SmartCard slot:

USB Sleep-and-Charge:

Yes

USB Sleep-and-Charge ports:

Keyboard

Numeric keypad:

Yes

Pointing device:

ThinkPad UltraNav

Spill-resistant keyboard:

Yes

Windows keys:

Yes

Software

Operating system installed:

Windows 10 Pro

Operating system architecture:

64-bit

Processor special features

Intel® Wireless Display (Intel® WiDi):

Yes

Intel® My WiFi Technology (Intel® MWT):

Yes

Intel® Smart Response Technology:

Yes

Intel® Identity Protection Technology (Intel® IPT):

Yes

Intel® Hyper Threading Technology (Intel® HT Technology):

Yes

Intel® Turbo Boost Technology:

2.0

Intel® Small Business Advantage (Intel® SBA):

Yes

Enhanced Intel SpeedStep Technology:

Yes

Intel® Clear Video HD Technology (Intel® CVT HD):

Yes

Intel Clear Video Technology:

Yes

Intel® InTru™ 3D Technology:

Yes

Intel® Insider™:

Yes

Intel® Quick Sync Video Technology:

Yes

Intel Flex Memory Access:

Yes

Intel® Smart Cache:

Yes

Intel® AES New Instructions (Intel® AES-NI):

Yes

Intel Trusted Execution Technology:

Intel Enhanced Halt State:

Yes

Intel VT-x with Extended Page Tables (EPT):

Yes

Intel® Secure Key:

Yes

Intel TSX-NI:

Intel Stable Image Platform Program (SIPP):

Intel® OS Guard:

Yes

Intel Software Guard Extensions (Intel SGX):

Yes

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID):

Yes

Intel 64:

Yes

Execute Disable Bit:

Yes

Idle States:

Yes

Thermal Monitoring Technologies:

Yes

Processor package size:

42 X 24 mm

Supported instruction sets:

SSE4.1, SSE4.2, AVX 2.0

Processor code:

SR2EY

CPU configuration (max):

Embedded options available:

Graphics & IMC lithography:

14 nm

Intel Virtualization Technology for Directed I/O (VT-d):

Yes

Intel Identity Protection Technology version:

1.00

Intel Smart Response Technology version:

1.00

Intel Stable Image Platform Program (SIPP) version:

0.00

Intel Secure Key Technology version:

1.00

Intel Small Business Advantage (SBA) version:

1.00

Intel TSX-NI version:

1.00

Intel Virtualization Technology (VT-x):

Yes

Processor ARK ID:

88193

Conflict-Free processor:

Yes

Battery

Battery technology:

Lithium-Ion (Li-Ion)

Number of battery cells:

Battery life (max):

11.2 h

Power

AC adapter power:

45 W

DC-in jack:

Yes

Security

Cable lock slot:

Yes

Password protection:

Yes

Weight & dimensions

Weight:

2.38 kg

Width:

377 mm

Depth:

255 mm

Height (front):

2.76 cm

Height (rear):

3.08 cm

Packaging content

AC adapter included:

Yes

Other features

Intel segment tagging:

Home office, Small Business
