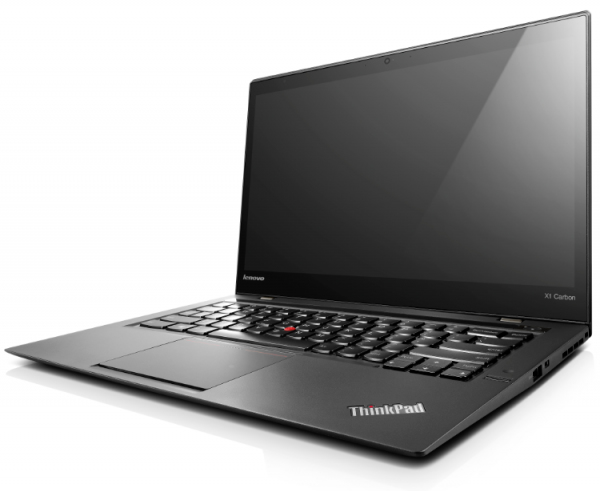

Lenovo ThinkPad ThinkPad X1 Carbon (2nd Gen)
Product Description
Add to FavoritesSummary
Model Lenovo ThinkPad X1 Carbon (2nd Gen), Intel® Core™ i7, 2.1 GHz, 35.6 cm (14"), 2560 x 1440 pixels, 8 GB, 256 GB Price $0.00 Categories Computers Laptops Lenovo Manufacturer Lenovo Product Number 20A7002WUS Add to CartFeatures
Long Battery Life
Stay unplugged all day — **up to 8.2 hours — but when you do need to boost your battery, breakthrough Lenovo RapidCharge technology charges up to 80% in just 35 minutes.
Intel® vPro Technology
One of the first Ultrabooks with Intel® vPro technology, which enables businesses to manage, protect, repair, and locate assets from anywhere in the world.
ThinkPad Precision Keyboard
Spill-resistant, six-row, island style keys enhance accuracy and comfort — plus backlit keyboard makes working in dark environments effortless.
Integrated Fingerprint Reader
Get quick, convenient access and secure login with one swipe.
Dolby® Home Theater® v4
Immerse yourself in surround sound and striking visuals with Intel® HD graphics and HDMI output.
Power Manager Software
Intuitively limits the energy drain of idle processes and provides an extra surge of energy when needed most, stretching your system's unplugged run-time to the max.
Military-Specification Testing
Validates the ruggedness, durability, and quality of ThinkPad products by testing against eight parameters: high pressure, humidity, vibration, high temperature, temperature shock, low pressure (15,000 ft), low temperature, and dust. Along with the carbon fiber roll cage and reinforcement throughout, the ensures durability. A carbon fiber roll cage with reinforcement throughout makes the X1 Carbon ultradurable, yet highly portable.
ThinkVantage Active Protection System (APS)
For models with traditional hard drives, an accelerometer detects movement and stops the drive when a fall or similar event is detected. Rubber mounts are used for the hard disk drive (rather than rails) and the HDD connector is not rigidly attached to the board, so the connector absorbs shock and impact and protects against system damage.
EPEAT® Gold, ENERGY STAR, ULE Gold Sustainable Product Certification
Save energy and lower power consumption costs — good for the planet and your bottom line.
Advanced Thermal Design
Dual vents and new 2012 fan blade design deliver 28% increase in airflow, plus dust collection is minimized. As a result, select ThinkPad models provide better processing performance and system reliability by minimizing system temperatures, as well as promoting a longer lifecycle.
Specifications
Family: ThinkPadSeries: X
ProductCode: 20A7002WUS
Category: Laptops
Design
Product type:
Ultrabook
Product colour:
Black
Form factor:
Clamshell
Display
Display diagonal:
35.6 cm (14")
Display resolution:
2560 x 1440 pixels
Touchscreen:
No
HD type:
Quad HD
LED backlight:
Yes
Native aspect ratio:
16:9
Processor
Processor family:
Intel® Core™ i7
Processor manufacturer:
Intel
Processor model:
i7-4600U
Processor frequency:
2.1 GHz
Processor generation:
4th gen Intel® Core™ i7
Processor cores:
2
Processor threads:
4
Processor boost frequency:
3.3 GHz
System bus rate:
5 GT/s
Processor cache:
4 MB
Processor cache type:
Smart Cache
Processor socket:
BGA 1168
Processor lithography:
22 nm
Processor operating modes:
64-bit
Processor series:
Intel Core i7-4600 Mobile series
Processor codename:
Haswell
Bus type:
DMI2
FSB Parity:
No
Stepping:
D0
Thermal Design Power (TDP):
15 W
Tjunction:
100 °C
Maximum number of PCI Express lanes:
12
PCI Express slots version:
2.0
PCI Express configurations:
4x1, 2x4
ECC supported by processor:
No
Memory
Internal memory:
8 GB
Maximum internal memory:
8 GB
Internal memory type:
DDR3-SDRAM
Storage
Total storage capacity:
256 GB
Storage media:
SSD
Optical drive type:
No
Number of SSDs installed:
1
SSD capacity:
256 GB
Card reader integrated:
No
Graphics
On-board graphics card:
Yes
Discrete graphics card:
No
Discrete graphics card model:
Not available
On-board graphics card model:
Intel® HD Graphics 4400
On-board graphics card family:
Intel® HD Graphics
On-board graphics card base frequency:
200 MHz
On-board graphics card dynamic frequency (max):
1100 MHz
Maximum on-board graphics card memory:
1.74 GB
On-board graphics card DirectX version:
11.2/12
On-board graphics card OpenGL version:
4.3
On-board graphics card ID:
0xA16
Audio
Audio system:
Dolby Home Theater v4
Number of built-in speakers:
2
Built-in microphone:
Yes
Camera
Front camera:
Yes
Network
Wi-Fi:
Yes
Wi-Fi standards:
802.11a, 802.11b, 802.11g
Ethernet LAN:
No
Bluetooth:
Yes
Bluetooth version:
4.0
Ports & interfaces
USB 2.0 ports quantity:
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
2
HDMI ports quantity:
1
eSATA/USB 2.0 ports quantity:
0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity:
0
eSATA ports quantity:
0
Ethernet LAN (RJ-45) ports:
0
DisplayPorts quantity:
0
Mini DisplayPorts quantity:
1
DVI port:
No
VGA (D-Sub) ports quantity:
0
Firewire (IEEE 1394) ports:
0
Thunderbolt ports quantity:
0
Headphone outputs:
0
S/PDIF out port:
No
Microphone in:
No
Combo headphone/mic port:
Yes
ExpressCard slot:
No
CardBus PCMCIA slots quantity:
0
CardBus PCMCIA slot type:
No
SmartCard slot:
No
Number of SATA III connectors:
4
Keyboard
Numeric keypad:
No
Keyboard backlit:
Yes
Island-style keyboard:
Yes
Windows keys:
Yes
Software
Operating system installed:
Windows 7 Professional
Operating system architecture:
64-bit
Processor special features
Intel® Wireless Display (Intel® WiDi):
Yes
Intel® My WiFi Technology (Intel® MWT):
No
Intel Smart Connect Technology:
Yes
Intel® Anti-Theft Technology (Intel® AT):
Yes
Intel® Smart Response Technology:
Yes
Intel® Identity Protection Technology (Intel® IPT):
Yes
Intel® Hyper Threading Technology (Intel® HT Technology):
Yes
Intel® Turbo Boost Technology:
2.0
Intel® Small Business Advantage (Intel® SBA):
Yes
Intel® Matrix Storage Technology (Intel® MST):
Yes
Intel® High Definition Audio (Intel® HD Audio):
Yes
Enhanced Intel SpeedStep Technology:
Yes
Intel® Clear Video HD Technology (Intel® CVT HD):
Yes
Intel Clear Video Technology:
No
Intel® InTru™ 3D Technology:
Yes
Intel® Insider™:
Yes
Intel® Quick Sync Video Technology:
Yes
Intel Flex Memory Access:
No
Intel® Smart Cache:
Yes
Intel® AES New Instructions (Intel® AES-NI):
Yes
Intel Trusted Execution Technology:
Yes
Intel Enhanced Halt State:
Yes
Intel VT-x with Extended Page Tables (EPT):
Yes
Intel Demand Based Switching:
No
Intel® Secure Key:
Yes
Intel TSX-NI:
No
Intel Stable Image Platform Program (SIPP):
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID):
No
Intel 64:
Yes
Execute Disable Bit:
Yes
Idle States:
Yes
Thermal Monitoring Technologies:
Yes
Processor package size:
40 x 24 x 1.5 mm
Supported instruction sets:
AVX 2.0, SSE4.1, SSE4.2
Processor code:
SR1EA
CPU configuration (max):
1
Embedded options available:
No
Intel Virtualization Technology for Directed I/O (VT-d):
Yes
Intel Smart Connect Technology version:
1.00
Intel Identity Protection Technology version:
1.00
Intel Smart Response Technology version:
1.00
Intel Stable Image Platform Program (SIPP) version:
1.00
Intel Secure Key Technology version:
1.00
Intel Small Business Advantage (SBA) version:
1.00
Intel ME Firmware Version:
9.5
Intel TSX-NI version:
0.00
Intel Virtualization Technology (VT-x):
Yes
Intel Dual Display Capable Technology:
No
Intel FDI Technology:
Yes
Intel Rapid Storage Technology:
Yes
Intel Fast Memory Access:
No
Processor ARK ID:
76616
Conflict-Free processor:
Yes
Battery
Battery capacity:
45 Wh
Battery technology:
Lithium Polymer (LiPo)
Number of battery cells:
4
Battery life (max):
8.2 h
Power
DC-in jack:
Yes
Security
Cable lock slot:
No
Fingerprint reader:
Yes
Sustainability
Sustainability certificates:
EPEAT Gold, ENERGY STAR
Weight & dimensions
Weight:
1.36 kg
Width:
331 mm
Depth:
226 mm
Height:
18.9 mm
Other features
LightScribe:
No
64-bit computing:
Yes
Intel segment tagging:
Enterprise, Small Business
