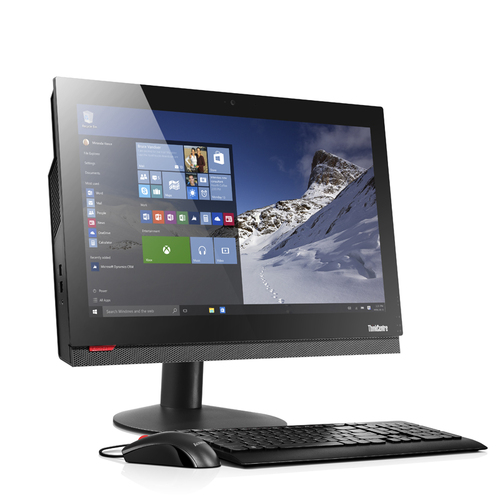

Lenovo ThinkCentre M800z
Product Description
Add to FavoritesSummary
Model Lenovo ThinkCentre M800z, 54.6 cm (21.5"), Full HD, Intel® Core™ i7, 8 GB, 256 GB, Windows 7 Professional Price $0.00 Categories Computers All-in-One PCs/Workstations Lenovo Manufacturer Lenovo Product Number 10EU0036US Add to CartFeatures
21.5" Display, Touch Optional
The FHD 21.5-inch display delivers a resolution of 1920 x 1080 with 250 nits, so all of your images and videos look vibrant and crisp. Plus wide screen viewing angle and antiglare technology make images more lifelike. Touch model includes 10-point multitouch.
Up to 6th Gen Intel® Core™ Processors
Thin, light, quiet, and versatile. The new 6th Gen Intel® Core™ processors deliver great mobile performance, blazing-fast responsiveness. This feature-packed processor with built-in security is ready to take your productivity, creativity, and entertainment to the next level. What's more, by enabling the exciting Windows 10 features, 6th Gen Intel Core processors empower you to unleash your imagination and explore the possibilities.
Up to Windows 10 Pro
Windows 10 Pro is designed to empower you and your business. It allows you to do great things across your devices securely with anyone, anywhere, and at any time. Fitting a variety of budgets, it's also very easy to use. So you can get more done right from the start.
Platform Stability
The M800z all-in-one desktop features a 27-month life cycle with no planned hardware changes that affect the preloaded software image. Image stability for long-term deployments helps to reduce transition, qualification, and testing costs to ensure savings for your business.
Solid Security
M800z all-in-one desktops include some of the best security tools available in the industry, including the Trusted Platform Module (TPM), which encrypts data and key information like passwords and digital certificates, further securing applications, electronic transactions, and online communication. Plus the M800z desktop includes a chassis intrusion switch, which alerts against any unauthorized access attempts. Physical security through cable lock and Absolute® Computrace Support.
Advanced Thermal Design
Our Intelligent Cooling Engine (ICE) is designed to provide a balance between thermals and acoustics resulting in long desktop life. With two optimized settings, you choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities.
Green Leadership
The latest Lenovo Desktop Power Manager enables enterprise-level power monitoring and puts you in control of saving energy and keeping costs down. Plus, with ratings like ENERGY STAR 6.1 and 92% efficiency with 80+ Platinum power supply unit (PSU), you can feel good about helping the planet and your bottom line.
Flexible Design
The M800z comes with a transformer stand that's sleek, slim, and minimalist—ideal for Touch models. Or you can use the VESA mount, which supports hanging your PC on the wall. Plus the M800z is equipped with a handle, which is most convenient for moving between offices or desks.
Enterprise-Level Support
Make your priority our priority. Bypass basic troubleshooting support with direct access to advanced-level technicians to resolve issues quickly, plus incident tracking and management escalation. Add Priority Technical Support to your purchase.
Specifications
Family: ThinkCentreSeries: M
ProductCode: 10EU0036US
Category: All-in-One PCs/Workstations
Display
Display diagonal:
54.6 cm (21.5")
Display resolution:
1920 x 1080 pixels
Touchscreen:
No
HD type:
Full HD
LED backlight:
Yes
Native aspect ratio:
16:9
Display surface:
Matt
Screen shape:
Flat
Processor
Processor family:
Intel® Core™ i7
Processor manufacturer:
Intel
Processor model:
i7-6700
Processor frequency:
3.4 GHz
Processor generation:
6th gen Intel® Core™ i7
Processor cores:
4
Processor threads:
8
Processor boost frequency:
4 GHz
Processor cache:
8 MB
Processor cache type:
Smart Cache
System bus rate:
8 GT/s
64-bit computing:
Yes
Thermal Design Power (TDP):
65 W
PCI Express slots version:
3.0
Processor socket:
LGA 1151 (Socket H4)
Processor lithography:
14 nm
Processor operating modes:
64-bit
Stepping:
R0
Bus type:
DMI3
Processor codename:
Skylake
Processor series:
Intel Core i7-6700 Desktop series
Maximum number of PCI Express lanes:
16
PCI Express configurations:
2x8, 1x8+2x4, 1x16
Processor code:
SR2BT
Tcase:
71 °C
Maximum internal memory supported by processor:
64 GB
Conflict-Free processor:
Yes
Memory types supported by processor:
DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor:
1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max):
34.1 GB/s
Memory channels supported by processor:
Dual
ECC supported by processor:
No
Memory voltage supported by processor:
1.35 V
Memory
Internal memory:
8 GB
Maximum internal memory:
32 GB
Internal memory type:
DDR4-SDRAM
Memory slots:
2
Memory slots type:
SO-DIMM
Memory clock speed:
2133 MHz
Memory layout (slots x size):
1 x 8 GB
Memory form factor:
DIMM/SO-DIMM
Storage
Total storage capacity:
256 GB
Storage media:
SSD
Optical drive type:
DVD±RW
Number of SSDs installed:
1
SSD capacity:
256 GB
Card reader integrated:
Yes
Graphics
Discrete graphics card model:
Not available
On-board graphics card:
Yes
On-board graphics card model:
Intel® HD Graphics 530
On-board graphics card family:
Intel® HD Graphics
On-board graphics card base frequency:
350 MHz
On-board graphics card dynamic frequency (max):
1150 MHz
Maximum on-board graphics card memory:
1.74 GB
Number of displays supported (on-board graphics):
3
On-board graphics card DirectX version:
12.0
On-board graphics card OpenGL version:
4.4
On-board graphics card ID:
1912
Audio
Built-in speaker(s):
Yes
RMS rated power:
4 W
Audio chip:
Realtek ALC233
Camera
Built-in camera:
Yes
Network
Wi-Fi:
Yes
Top Wi-Fi standard:
Wi-Fi 5 (802.11ac)
Ethernet LAN:
Yes
Bluetooth:
Yes
Wi-Fi standards:
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates:
10,100,1000 Mbit/s
Ports & interfaces
USB 2.0 ports quantity:
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
0
HDMI ports quantity:
0
Ethernet LAN (RJ-45) ports:
1
Thunderbolt ports quantity:
0
Thunderbolt 3 ports quantity:
0
VGA (D-Sub) ports quantity:
0
DisplayPorts quantity:
1
Headphone outputs:
0
Microphone in:
No
Combo headphone/mic port:
Yes
USB Sleep-and-Charge:
Yes
USB Sleep-and-Charge ports:
1
Design
Product colour:
Black
Performance
Product type:
All-in-One PC
Trusted Platform Module (TPM):
Yes
Software
Operating system installed:
Windows 7 Professional
Operating system architecture:
64-bit
Recovery operating system:
Windows 10 Pro
Processor special features
Intel® Turbo Boost Technology:
2.0
Intel® Hyper Threading Technology (Intel® HT Technology):
Yes
Intel® Identity Protection Technology (Intel® IPT):
Yes
Intel® Small Business Advantage (Intel® SBA):
Yes
Intel® Wireless Display (Intel® WiDi):
Yes
Enhanced Intel SpeedStep Technology:
Yes
Intel® Built-in Visuals Technology:
Yes
Intel HD Graphics:
Yes
Intel® Quick Sync Video Technology:
Yes
Intel® Clear Video HD Technology (Intel® CVT HD):
Yes
Intel Clear Video Technology:
Yes
Intel® Insider™:
Yes
Intel® InTru™ 3D Technology:
Yes
Intel® Smart Cache:
Yes
Intel® AES New Instructions (Intel® AES-NI):
Yes
Intel Trusted Execution Technology:
Yes
Intel Enhanced Halt State:
Yes
Intel VT-x with Extended Page Tables (EPT):
Yes
Intel® Secure Key:
Yes
Intel TSX-NI:
Yes
Intel Stable Image Platform Program (SIPP):
Yes
Intel® OS Guard:
Yes
Intel Software Guard Extensions (Intel SGX):
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID):
Yes
Intel 64:
Yes
Execute Disable Bit:
Yes
Idle States:
Yes
Thermal Monitoring Technologies:
Yes
Processor package size:
37.5 x 37.5 mm
Supported instruction sets:
SSE4.1, AVX 2.0, SSE4.2
Scalability:
1S
CPU configuration (max):
1
Embedded options available:
Yes
Graphics & IMC lithography:
14 nm
Thermal solution specification:
PCG 2015C
Intel Virtualization Technology for Directed I/O (VT-d):
Yes
Intel Identity Protection Technology version:
1.00
Intel Stable Image Platform Program (SIPP) version:
1.00
Intel Secure Key Technology version:
1.00
Intel Virtualization Technology (VT-x):
Yes
Intel Small Business Advantage (SBA) version:
1.00
Intel TSX-NI version:
1.00
Processor ARK ID:
88196
Power
AC adapter power:
150 W
Weight & dimensions
Width (with stand):
535 mm
Depth (with stand):
253 mm
Height (with stand):
489 mm
Weight (with stand):
8.3 kg
Width (without stand):
535 mm
Depth (without stand):
363 mm
Height (without stand):
45 mm
Weight (without stand):
5.8 kg
Packaging content
Mouse included:
Yes
Keyboard included:
Yes
Other features
Autonomy mode:
No
Detachable display:
No
Intel segment tagging:
Enterprise, Professional
