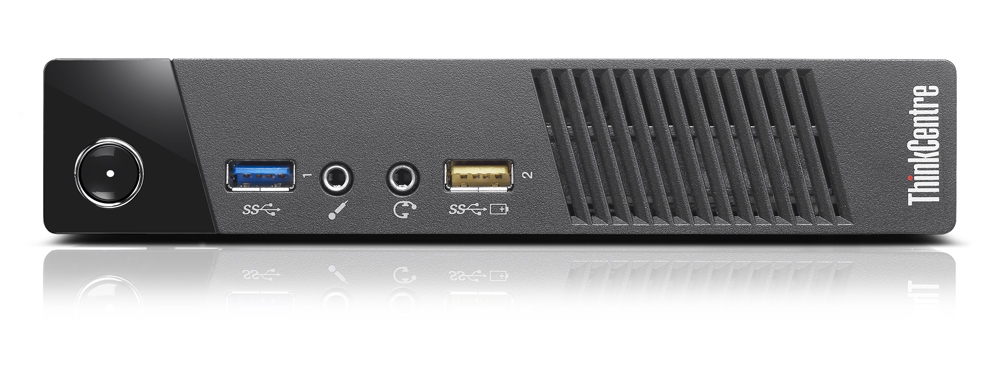

Lenovo ThinkCentre M83 Tiny
Product Description
Add to FavoritesSummary
Model Lenovo ThinkCentre M83 Tiny, 2.9 GHz, Intel® Core™ i3, i3-4130T, 4 GB, 500 GB, Windows 7 Professional Price $0.00 Categories Computers PCs/Workstations Lenovo Manufacturer Lenovo Product Number 10E9000NUS Warranty 3 Years Add to CartFeatures
Tiny Form Factor
Our tiny desktops were the first 1L desktop in the industry. Complete with flexible mounting solutions, including support for standard VESA mounts, Tiny desktops fit just about anywhere, yet they provide a reliable, enterprise-level performance that you can depend on.
Platform Stability
The M83 desktop features Intel Stable Image Platform Program (SIPP) and 15-month life cycle with no planned hardware changes that affect the preloaded software image. Image stability for long-term deployments helps to reduce transition, qualification, and testing costs to ensure savings for your business.
Multiple Monitor Display
Maximize productivity with independent display support for up to three monitors—or four via Mosaic Mode. The expanded work area and easier navigation between applications helps reduce errors and improve productivity as you extend your desktop across multiple monitors. (Requires second optional DisplayPort connectors.)
Solid Security & Manageability
M83 Tiny desktops include some of the best security tools available in the industry, including USB ports disablement to help prevent data theft and network security risks against unauthorized use of storage devices. Active Protection System for HDD protection. Trusted Platform Module (TPM) encrypts data and key information like passwords and digital certificates, further securing applications, electronic transactions, and online communication. Plus the M83 desktop includes an optional chassis intrusion switch, which alerts against any unauthorized access attempts. Physical security through cable lock and Computrace Support.
Advanced Thermal Design
Our Intelligent Cooling Engine (ICE) 3.0 is designed to provide a balance between thermals and acoustics, resulting in long desktop life. Choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE 3.0 allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities, so you don’t have to worry about business continuity.
Keyboard / Monitor Power-On
If you choose to mount this compact unit on the back of your monitor, you can still power on conveniently from the front, by simply pressing Alt+P on your keyboard. Or use the M83 Tiny with our new modular all-in-one, the Tiny-in-One 23, which lets you power on from the front of the monitor.
Plenty of Storage
The M83 includes optional second HDD (2.5 inches) and dual graphic card support. Up to three hard drives and one slim ODD supported.
PC Cloud Manager 3.0
Keep your PC fleet healthy and green as you effortlessly monitor and manage your desktop's health and power consumption.
Lenovo Solution Center
Lenovo Solution Center provides access to a simplified dashboard that reflects total system health. This hardware diagnostic tool allows quick access to frequently used system management tools, including backup and restore, antivirus and firewall settings, system/software updates, internet connections, and service and support. Drastically speed migration time with ThinkVantage System Migration Assistant. Spend less time manually searching for drivers and software updates with ThinkVantage System Update.
Green Leadership
Cisco EnergyWise certification enables enterprise-level power monitoring and Lenovo Desktop Power Manager puts you in control of saving energy and keeping costs down. Plus, with ratings like ENERGY STAR 5.2, ULE Gold, EPEAT Gold, and 92% efficiency with 80+ Platinum power supply unit (PSU), you can feel good about helping the planet and your bottom line.
Specifications
Family: ThinkCentreSeries: M
ProductCode: 10E9000NUS
Category: PCs/Workstations
Processor
Processor family:
Intel® Core™ i3
Processor manufacturer:
Intel
Processor model:
i3-4130T
Processor frequency:
2.9 GHz
Processor generation:
4th gen Intel® Core™ i3
Processor cores:
2
Processor threads:
4
Processor socket:
LGA 1150 (Socket H3)
Processor cache:
3 MB
Processor cache type:
Smart Cache
System bus rate:
5 GT/s
Bus type:
DMI
FSB Parity:
No
Processor lithography:
22 nm
Processor operating modes:
32-bit, 64-bit
Processor series:
Intel Core i3-4100 Desktop series
Processor codename:
Haswell
Thermal Design Power (TDP):
35 W
Tcase:
72 °C
PCI Express slots version:
3.0
Maximum number of PCI Express lanes:
16
PCI Express configurations:
2x8
Number of processors installed:
1
Number of QPI links:
0
Maximum internal memory supported by processor:
32 GB
Memory types supported by processor:
DDR3-SDRAM
Memory clock speeds supported by processor:
1333,1600 MHz
Memory bandwidth supported by processor (max):
25.6 GB/s
ECC supported by processor:
Yes
Memory
Internal memory:
4 GB
Maximum internal memory:
16 GB
Internal memory type:
DDR3L-SDRAM
Memory layout (slots x size):
1 x 4 GB
Memory slots:
2x SO-DIMM
Memory clock speed:
1600 MHz
Memory channels:
Dual-channel
Storage
Total storage capacity:
500 GB
Optical drive type:
No
Storage media:
HDD
Number of storage drives installed:
1
Number of HDDs installed:
1
HDD capacity:
500 GB
HDD interface:
SATA III
HDD speed:
7200 RPM
HDD size:
2.5"
Card reader integrated:
No
Graphics
On-board graphics card:
Yes
Discrete graphics card model:
Not available
On-board graphics card model:
Intel® HD Graphics 4400
On-board graphics card family:
Intel® HD Graphics
On-board graphics card base frequency:
200 MHz
On-board graphics card dynamic frequency (max):
1150 MHz
Maximum on-board graphics card memory:
1.74 GB
Number of displays supported (on-board graphics):
3
On-board graphics card DirectX version:
11.1
On-board graphics card ID:
0x41E
Graphics card Open GL support:
Yes
Network
Ethernet LAN:
Yes
Wi-Fi:
Yes
Ethernet LAN data rates:
10,100,1000 Mbit/s
Cabling technology:
10/100/1000Base-T(X)
Top Wi-Fi standard:
Wi-Fi 4 (802.11n)
Wi-Fi standards:
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth:
Yes
Bluetooth version:
4.0
Ports & interfaces
USB 2.0 ports quantity:
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
4
HDMI ports quantity:
0
VGA (D-Sub) ports quantity:
1
DVI port:
No
DisplayPorts quantity:
1
Ethernet LAN (RJ-45) ports:
1
Microphone in:
Yes
Headphone outputs:
1
DC-in jack:
Yes
Design
Chassis type:
Mini PC
Product colour:
Black
Volume:
1 L
Placement supported:
Horizontal/Vertical
Water cooling system:
No
Cable lock slot:
Yes
Cable lock slot type:
Kensington
Performance
Product type:
Mini PC
Motherboard chipset:
Intel® Q85
Audio system:
Realtek ALC233
Software
Operating system installed:
Windows 7 Professional
Operating system architecture:
64-bit
Recovery operating system:
Windows 8.1 Pro
Processor special features
Intel® Wireless Display (Intel® WiDi):
Yes
Intel 64:
Yes
Enhanced Intel SpeedStep Technology:
Yes
Embedded options available:
No
Intel® InTru™ 3D Technology:
Yes
Intel® Insider™:
No
Intel® Clear Video HD Technology (Intel® CVT HD):
Yes
Intel Clear Video Technology:
No
Intel VT-x with Extended Page Tables (EPT):
Yes
Intel TSX-NI:
No
Idle States:
Yes
Thermal Monitoring Technologies:
Yes
Intel Stable Image Platform Program (SIPP):
No
Intel® AES New Instructions (Intel® AES-NI):
Yes
Intel Trusted Execution Technology:
No
Execute Disable Bit:
Yes
Intel FDI Technology:
No
Intel Flex Memory Access:
No
Intel Fast Memory Access:
No
Intel Enhanced Halt State:
Yes
Intel Demand Based Switching:
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID):
No
Processor package size:
37.5 x 37.5 mm
Supported instruction sets:
AVX 2.0
Scalability:
1S
CPU configuration (max):
1
Graphics & IMC lithography:
22 nm
Thermal solution specification:
PCG 2013A
Intel Virtualization Technology for Directed I/O (VT-d):
No
Intel Stable Image Platform Program (SIPP) version:
0.00
Intel Virtualization Technology (VT-x):
Yes
Intel Small Business Advantage (SBA) version:
1.00
Intel TSX-NI version:
0.00
Intel Dual Display Capable Technology:
No
Intel Rapid Storage Technology:
No
Processor ARK ID:
77481
Intel® Turbo Boost Technology:
No
Intel® Hyper Threading Technology (Intel® HT Technology):
Yes
Intel® Quick Sync Video Technology:
Yes
Intel® My WiFi Technology (Intel® MWT):
No
Intel® Anti-Theft Technology (Intel® AT):
No
Conflict-Free processor:
Yes
Power
Power supply:
65 W
Certificates
Compliance certificates:
RoHS
Certification:
GREENGUARD, ErP 3, UL Gold, TUV
Sustainability
Sustainability certificates:
EPEAT Gold, ENERGY STAR
Weight & dimensions
Width:
179 mm
Depth:
182 mm
Height:
34.5 mm
Weight:
1.3 kg
Packaging content
Mouse included:
Yes
Keyboard included:
Yes
Display
Display included:
No
Other features
Optical drives quantity:
0
Stand included:
Yes
Intel® Virtualization Technology (Intel® VT):
VT-d, VT-x
Intel segment tagging:
Enterprise, Professional
