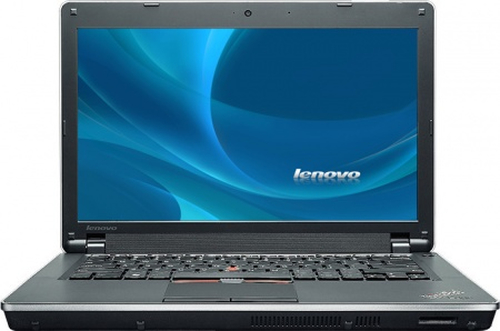

Lenovo ThinkPad Edge 14
Product Description
Add to FavoritesSummary
Model Lenovo ThinkPad Edge 14, Intel® Core™ i3, 2.53 GHz, 35.6 cm (14"), 1366 x 768 pixels, 2 GB, 320 GB Price $0.00 Categories Computers Laptops Lenovo Manufacturer Lenovo Product Number 05796AU Warranty 1 year Add to CartFeatures
THE LENOVO THINKPAD EDGE 14" AND 15" NOTEBOOKS
The ThinkPad Edge 14" and 15" are the latest addition to the ThinkPad family. These stylish small-business notebooks provide the perfect blend of business and consumer features. The choice of Midnight Black — Gloss, Midnight Black — Smooth, or Heatwave Red — Gloss finish enhances the style statement of the ThinkPad Edge’s elegant industrial design.
With a strong focus on ease of use, ThinkPad Edge series introduces a new contemporary style keyboard layout and keycap design that refl ect modern usage patterns. The notebook’s UltraNav™ combination of TrackPoint® and multi-gesture touchpad provide you with a choice of navigation methods that increase its usability. A new low-light sensitive webcam offers excellent video performance, even under dim lighting conditions.
Small business owners and their employees expect reliable performance from their notebooks. ThinkPad Edge 14" and 15" offer reliable performance with the latest Intel® processor options, multiple wireless connectivity options and excellent battery life. Features such as Active Protection System™ and the spill-resistant keyboard ensure that ThinkPad Edge meets the rigorous demands of everyday usage scenarios. In addition, the optional fingerprint reader secures your data with hardware authentication.
The ThinkPad Edge continues ThinkPad’s commitment to environmental responsibility and complies with EPEAT® Gold, ENERGY STAR® 5.0 and RoHS environmental standards. ThinkPad Edge exceeds industry requirements by using 100% recycled paperboard, recycled packaging and non-toxic inks.
A comprehensive computing solution with a new design, ease-of-use multiple-connectivity options and green attributes make ThinkPad Edge 14'' and 15" the right choice for small businesses.
ThinkPad Edge 14" and 15" are perfect when you need the latest Intel® Core™ family processors, discrete graphics, wider viewing area, more connectivity ports such as eSATA and express card, integrated optical drive, fingerprint reader and digital stereo microphone.
Specifications
Family: ThinkPadSeries: Edge
ProductCode: 05796AU
Category: Laptops
Design
Product type:
Laptop
Product colour:
Black
Form factor:
Clamshell
Display
Display diagonal:
35.6 cm (14")
Display resolution:
1366 x 768 pixels
Touchscreen:
No
HD type:
HD
LED backlight:
Yes
Native aspect ratio:
16:9
Display brightness:
220 cd/m²
Contrast ratio (typical):
500:1
Processor
Processor family:
Intel® Core™ i3
Processor manufacturer:
Intel
Processor model:
i3-380M
Processor frequency:
2.53 GHz
Processor generation:
Intel® Core™ i3
Processor cores:
2
Processor threads:
4
System bus rate:
2.5 GT/s
Processor cache:
3 MB
Processor cache type:
Smart Cache
Processor socket:
PGA988
Processor lithography:
32 nm
Processor operating modes:
64-bit
Processor series:
Intel Core i3-300 Mobile Series
Processor codename:
Arrandale
Bus type:
DMI
FSB Parity:
No
Thermal Design Power (TDP):
35 W
Tjunction:
90 °C
Maximum number of PCI Express lanes:
16
PCI Express slots version:
2.0
PCI Express configurations:
1x16
Number of Processing Die Transistors:
382 M
Processing Die size:
81 mm²
CPU multiplier (bus/core ratio):
19
ECC supported by processor:
No
Memory
Internal memory:
2 GB
Maximum internal memory:
8 GB
Internal memory type:
DDR3-SDRAM
Memory clock speed:
1066 MHz
Memory layout (slots x size):
1 x 2 GB
Memory slots:
2x SO-DIMM
Storage
Total storage capacity:
320 GB
Storage media:
HDD
Optical drive type:
DVD±RW
Number of HDDs installed:
1
HDD capacity:
320 GB
HDD interface:
SATA
HDD speed:
5400 RPM
Number of SSDs installed:
0
Card reader integrated:
Yes
Compatible memory cards:
Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD
Graphics
On-board graphics card:
Yes
Discrete graphics card:
No
Discrete graphics card model:
Not available
On-board graphics card model:
Intel® HD Graphics
On-board graphics card family:
Intel® HD Graphics
On-board graphics card base frequency:
500 MHz
On-board graphics card dynamic frequency (max):
667 MHz
Audio
Audio system:
HD
Number of built-in speakers:
2
Speaker power:
3 W
Built-in microphone:
Yes
Camera
Front camera resolution (numeric):
2 MP
Auto focus:
Yes
Network
Wi-Fi:
Yes
Wi-Fi standards:
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN:
Yes
Ethernet LAN data rates:
10,100,1000 Mbit/s
Bluetooth:
No
Cabling technology:
10/100/1000Base-T(X)
Networking standards:
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ports & interfaces
USB 2.0 ports quantity:
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
0
HDMI ports quantity:
1
eSATA/USB 2.0 ports quantity:
1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity:
0
eSATA ports quantity:
0
Ethernet LAN (RJ-45) ports:
1
DisplayPorts quantity:
0
DVI port:
No
VGA (D-Sub) ports quantity:
1
Firewire (IEEE 1394) ports:
0
Thunderbolt ports quantity:
0
Headphone outputs:
0
S/PDIF out port:
No
Microphone in:
No
Combo headphone/mic port:
Yes
Docking connector:
No
ExpressCard slot:
Yes
CardBus PCMCIA slots quantity:
0
CardBus PCMCIA slot type:
No
SmartCard slot:
No
Performance
Motherboard chipset:
Intel® HM55 Express
Keyboard
Numeric keypad:
No
Pointing device:
ThinkPad UltraNav
Spill-resistant keyboard:
Yes
Full-size keyboard:
No
Windows keys:
Yes
Keyboard layout:
QWERTY
Software
Operating system installed:
Windows 7 Professional
Operating system architecture:
64-bit
Processor special features
Intel® Wireless Display (Intel® WiDi):
No
Intel® My WiFi Technology (Intel® MWT):
No
Intel® Anti-Theft Technology (Intel® AT):
No
Intel® Hyper Threading Technology (Intel® HT Technology):
Yes
Intel® Turbo Boost Technology:
No
Intel® Small Business Advantage (Intel® SBA):
Yes
Enhanced Intel SpeedStep Technology:
Yes
Intel® Clear Video HD Technology (Intel® CVT HD):
Yes
Intel Clear Video Technology:
Yes
Intel® InTru™ 3D Technology:
No
Intel® Insider™:
No
Intel® Quick Sync Video Technology:
No
Intel Flex Memory Access:
Yes
Intel® AES New Instructions (Intel® AES-NI):
No
Intel Trusted Execution Technology:
No
Intel Enhanced Halt State:
Yes
Intel VT-x with Extended Page Tables (EPT):
Yes
Intel Demand Based Switching:
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID):
Yes
Intel 64:
Yes
Execute Disable Bit:
Yes
Idle States:
Yes
Thermal Monitoring Technologies:
Yes
Processor package size:
rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets:
SSE4.1/4.2
Physical Address Extension (PAE):
36 bit
CPU configuration (max):
1
Embedded options available:
No
Graphics & IMC lithography:
45 nm
Intel Virtualization Technology for Directed I/O (VT-d):
No
Intel Virtualization Technology (VT-x):
Yes
Intel Dual Display Capable Technology:
Yes
Intel FDI Technology:
Yes
Intel Rapid Storage Technology:
No
Intel Fast Memory Access:
Yes
Processor ARK ID:
50178
Conflict-Free processor:
No
Battery
Battery technology:
Lithium-Ion (Li-Ion)
Power
AC adapter power:
65 W
Security
Cable lock slot:
No
Certificates
Compliance certificates:
RoHS
Sustainability
Sustainability certificates:
EPEAT Gold, ENERGY STAR
Weight & dimensions
Weight:
2.14 kg
Width:
344 mm
Depth:
233 mm
Height (front):
3.18 cm
Height (rear):
3.7 cm
Packaging content
AC adapter included:
Yes
Other features
LightScribe:
No
3D:
No
