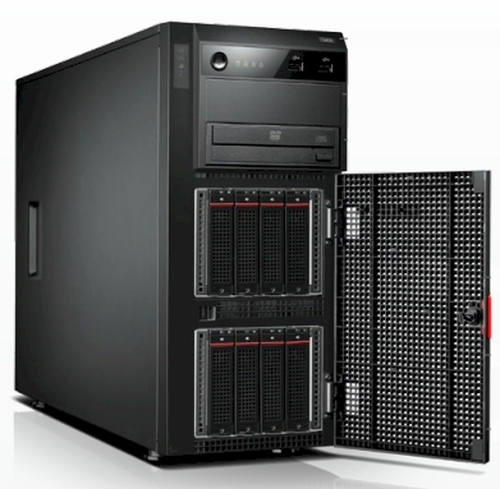

Lenovo ThinkServer TS430

Product Description

Add to Favorites

Summary

Model Lenovo ThinkServer TS430, 3.4 GHz, i3-3240, 4 GB, DDR3-SDRAM, 400 W, Tower (5U) Price $0.00 Categories Computers Servers Lenovo Manufacturer Lenovo Product Number 038914U

Add to Cart

Features
Specifications
Photos

Features

THINKSERVER TS430: Scalable. Redundant. Secure.

Featuring up to Intel® Xeon® E3 processors.

Feature-rich in an all-new tower chassis, ThinkServer TS430 offers a powerhouse of storage capacity, sophisticated SAS RAID solutions, robust IPMI 2.0-compliant manageability tools, and redundant power for security. This server combines outstanding Intel® Xeon® E3 technology with legendary Think product innovation and unmatched value — perfect for your fast-growing business.

Ideal for demanding work environments where 24/7operation and powerful, energy-efficient performance aren't negotiable. TS430 provides an outstanding value to businesses large or small, with a slender, whisper-quiet chassis that's easily deployed in retail or front office use.

Specifications

Family: ThinkServer
Series: TS
ProductCode: 038914U
Category: Servers

Processor

Processor family:

Intel® Core™ i3

Processor manufacturer:

Intel

Processor model:

i3-3240

Processor frequency:

3.4 GHz

Processor generation:

3rd gen Intel® Core™ i3

Processor cores:

Processor cache:

3 MB

Motherboard chipset:

Intel® C202

Memory channels supported by processor:

Dual

Number of processors installed:

Thermal Design Power (TDP):

55 W

Processor cache type:

Smart Cache

System bus rate:

5 GT/s

Processor socket:

LGA 1155 (Socket H2)

Processor lithography:

22 nm

Processor threads:

Processor operating modes:

64-bit

FSB Parity:

Bus type:

DMI

Processor codename:

Ivy Bridge

Tcase:

65.3 °C

Maximum internal memory supported by processor:

32 GB

Memory types supported by processor:

DDR3-SDRAM

Memory clock speeds supported by processor:

1333,1600 MHz

Memory bandwidth supported by processor (max):

25.6 GB/s

ECC supported by processor:

Yes

Execute Disable Bit:

Yes

Idle States:

Yes

Thermal Monitoring Technologies:

Yes

PCI Express configurations:

1x16, 2x8

Processor package size:

37.5 x 37.5 mm

Supported instruction sets:

AVX, SSE4.1, SSE4.2

Embedded options available:

Thermal solution specification:

PCG 2011C

CPU multiplier (bus/core ratio):

Processor series:

Intel Core i3-3200 Desktop Series

Conflict-Free processor:

Yes

Intelligent Platform Management Interface (IPMI) support:

Yes

Memory

Internal memory:

4 GB

Internal memory type:

DDR3-SDRAM

Maximum internal memory:

32 GB

Memory slots:

ECC:

Yes

Memory clock speed:

1333 MHz

Memory layout (slots x size):

1 x 4 GB

Storage

Maximum storage capacity:

8 TB

RAID support:

Yes

Optical drive type:

DVD-ROM

HDD interface:

Serial ATA

HDD speed:

7200 RPM

HDD size:

3.5"

Number of HDDs supported:

RAID levels:

0, 1, 10

Hot-swap:

Yes

Graphics

On-board graphics card:

Yes

On-board graphics card family:

Intel® HD Graphics

On-board graphics card model:

Intel® HD Graphics 2500

On-board graphics card base frequency:

650 MHz

On-board graphics card dynamic frequency (max):

1050 MHz

Number of displays supported (on-board graphics):

On-board graphics card ID:

0x152

Network

Wi-Fi:

Bluetooth:

Ethernet LAN:

Yes

Cabling technology:

10/100/1000Base-T(X)

Ethernet interface type:

Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports:

USB 2.0 ports quantity:

PS/2 ports quantity:

VGA (D-Sub) ports quantity:

Serial ports quantity:

Expansion slots

PCI Express x8 slots:

PCI Express x16 slots:

PCI Express slots version:

2.0

Design

Chassis type:

Tower (5U)

Performance

Trusted Platform Module (TPM):

Yes

Software

Operating system installed:

Compatible operating systems:

- Windows Server 2003 x86 (Standard / Enterprise) - Windows Server 2008 x86 (Standard / Enterprise / Datacenter) - Windows Server 2008 x64 (Standard / Enterprise / Datacenter) - Windows Server 2008 R2 x64 (Standard / Enterprise / Datacenter) - Windows Server 2008 R2 SP1 x64 (Standard / Enterprise / Datacenter) - Windows Small Business Server 2011(Standard / Premium Add On) - Novel SUSE Linux Enterprise Server (11.1 / 11.2) - RedHat Enterprise Linux Server (5.7 / 6.1) - VMWare vSphere 5

Processor special features

CPU configuration (max):

Intel Rapid Storage Technology:

Enhanced Intel SpeedStep Technology:

Yes

Intel® Identity Protection Technology (Intel® IPT):

Yes

Intel® Wireless Display (Intel® WiDi):

Yes

Intel Virtualization Technology for Directed I/O (VT-d):

Intel® Anti-Theft Technology (Intel® AT):

Yes

Intel® Hyper Threading Technology (Intel® HT Technology):

Yes

Intel® My WiFi Technology (Intel® MWT):

Yes

Intel® Turbo Boost Technology:

Intel® Quick Sync Video Technology:

Yes

Intel® InTru™ 3D Technology:

Yes

Intel® Clear Video HD Technology (Intel® CVT HD):

Yes

Intel® Insider™:

Yes

Intel Flex Memory Access:

Yes

Intel® AES New Instructions (Intel® AES-NI):

Intel Trusted Execution Technology:

Intel Enhanced Halt State:

Yes

Intel VT-x with Extended Page Tables (EPT):

Yes

Intel Demand Based Switching:

Intel® Secure Key:

Intel Clear Video Technology:

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID):

Intel 64:

Yes

Intel Identity Protection Technology version:

1.00

Intel Secure Key Technology version:

0.00

Intel Virtualization Technology (VT-x):

Yes

Intel Dual Display Capable Technology:

Intel FDI Technology:

Yes

Intel Fast Memory Access:

Yes

Processor ARK ID:

65690

Power

Redundant power supply (RPS) support:

Power supply:

400 W

Number of power supply units:

Operational conditions

Operating temperature (T-T):

10 - 35 °C

Storage temperature (T-T):

-40 - 70 °C

Operating relative humidity (H-H):

8 - 80%

Storage relative humidity (H-H):

8 - 90%

Sustainability

Sustainability certificates:

ENERGY STAR

Weight & dimensions

Width:

195 mm

Depth:

595 mm

Height:

430 mm

Weight:

28 kg

Packaging content

Mouse included:

Keyboard included:

Other features

Graphics card:

HD Graphics 2500

Graphics card memory type:

GDDR3

Graphics card family:

Intel

Photos
